Design your own EVOline Port

Get creative, be your own designer

Do you have other demands than our standard products contain, just choose the modules YOU require

Designtool to create “your own” EVOline Port variation

EVOlineStore DesignTool Port

The latest version of our designtool for this specific system has been updated to create an interactive user experience. By changing different components or modules the pricing is dynamically updated. This enables you to add different modules and watch price consequences immediately.

The final version will be emailed to the email address you provide. This email also holds details on the further order process.

Click here to get started

0$

Thanks, we will contact you soon

Housing / Profile color

Profile anodized aluminum Silver

Profile anodized aluminum Black

Profile anodized aluminum Brass

You need to select an item to continue

NEXT STEP

Rocking cover material and color

Rocking Cover Silver - EVOlineStore

Rocking cover plastic Silver

Rocking Cover Black - EVOlineStore

Rocking cover plastic Black

Rocking Cover White - EVOlineStore

Rocking cover plastic White

Rocking cover plastic Brass

Rocking Cover Stainless Steel - EVOlineStore

Rocking cover Solid Stainless Steel

You need to select an item to continue

NEXT STEP

LED Nightlight color

A circle of LED's below the rocking cover, mounted in the rocker base shining upwards.

EVOline Port LED nightlight Blue - EVOlineStore

LED nightlight Blue

EVOline Port LED nightlight Red - EVOlineStore

LED nightlight Red

EVOline Port LED nightlight Green - EVOlineStore

LED nightlight Green

EVOline Port LED nightlight White - EVOlineStore

LED nightlight White

You need to select an item to continue

NEXT STEP

On/Off switch for Nightlight

You need to select an item to continue

NEXT STEP

Power modules

Different power sockets can be used in a single unit. In case different voltages like 125V + 230V are combined, a double power connection cable is required.

vde-power - EVOlineStore
- +
1

VDE (Schuko-German)

bf-power-evolinestore
- +
1

B/F (Schuko-French)

UK power 45 degrees - EVOlineStore
- +
1

UK 45° (50mm)

danish-power-evolinestore
- +
1

Danish

swiss-power-evolinestore
- +
1

Switzerland

usa-power-0-degrees-evolinestore
- +
1

USA 0° angled (75mm)

usa-power-60-degrees-evolinestore
- +
1

USA 60°

aus-power-0-degrees-evolinestore
- +
1

Australia 0° angled (75mm)

aus-power-270-degrees-evolinestore
- +
1

Australia 270°

china-power-evolinestore
- +
1

China

italien-power-evolinestore
- +
1

Italia

You need to select an item to continue

NEXT STEP

Multimedia + Data modules

The selection below is limited since there are many variants, different combinations and other cable lengths available. If you require other variants, just leave a remark in the final step.

rj45-single-evolinestore
- +
1

RJ45 Single, CAT6 shielded

rj45-double-evolinestore
- +
1

RJ45 Double, CAT6 shielded

usb-3-0-evolinestore
- +
1

USB 3.0 Type-A (cable 0.2m)

EVOline 1x USB 3.1 module 50x50 - EVOlineStore
- +
1

USB 3.1 Type-C (cable 1,0m)

EVOline-CableOutlet-1 - EVOlineStore
- +
1

Cable Outlet single

hdmi-evolinestore
- +
1

HDMI 2.0 (cable 0.2m)

displayport-evolinestore
- +
1

DisplayPort 1.2 (cable 0.4m)

vga-evolinestore
- +
1

VGA (cable 3.0m)

vga-audio-evolinestore
- +
1

VGA + Audio (cable 3.0m)

You need to select an item to continue

NEXT STEP

Power connection

There are other options available like GST18 in/out. Contact us for more options.

evoline-single-circuit-evolinestore

Suitable for VDE, B/F, UK, DK

evoline-single-circuit-evolinestore

Suitable for USA, AUS, Swiss (16A)

evoline-double-circuit-evolinestore

Swiss (10A) + Overload circuit breaker

You need to select an item to continue

NEXT STEP

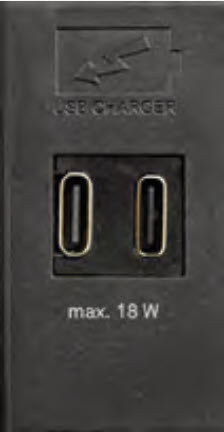

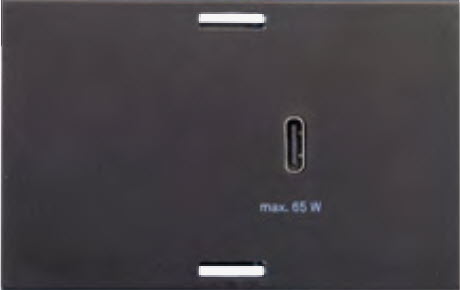

USB Chargers

All EVOline USB chargers supply voltage: 100-240 VAC, 5V / 2.1A. Installation dimensions 25 x 50mm.

Single USB charger 2.1A - EVOlineStore
- +
1

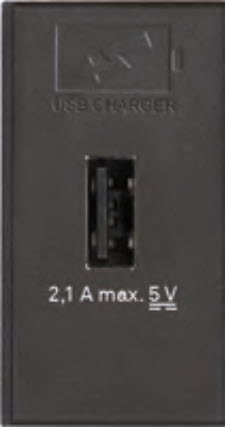

25mm - USB charger Type-A - 2.1A

EVOline single USB charger Type-C 2.1A 25x50 - EVOlineStore
- +
1

25mm - USB charger Type-C - 2.1A

EVOline double USB charger Type-A + Type-C 2.1A 25x50
- +
1

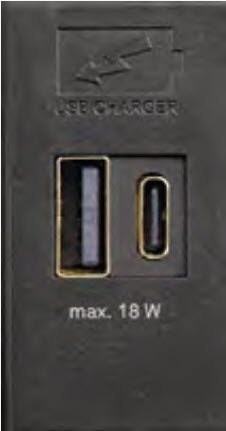

25mm Double USB charger Type-A + Type-C - 2.1A

EVOline double USB charger Type-A + Type-C 2.1A 25x50
- +
1

50mm - Double USB charger Type-A + Type-C - 30W

EVOline double USB charger Type-A + Type-C 2.1A 25x50
- +
1

50mm - Double USB charger Type-A + Type-C - 65W

You need to select an item to continue

NEXT STEP

Discount

We offer "online quote" discount, just tick the dicount below


You need to select an item to continue

NEXT STEP

Final cost

The final estimated price is :

Enter your name

Enter your email address

Specify the amount of units and / or other requests.

Summary

Description Information Quantity Price
Discount :
Total :

Send your quotation details
