EVOline One DisQ

Description

EVOline One DisQ

See more EVOline One options

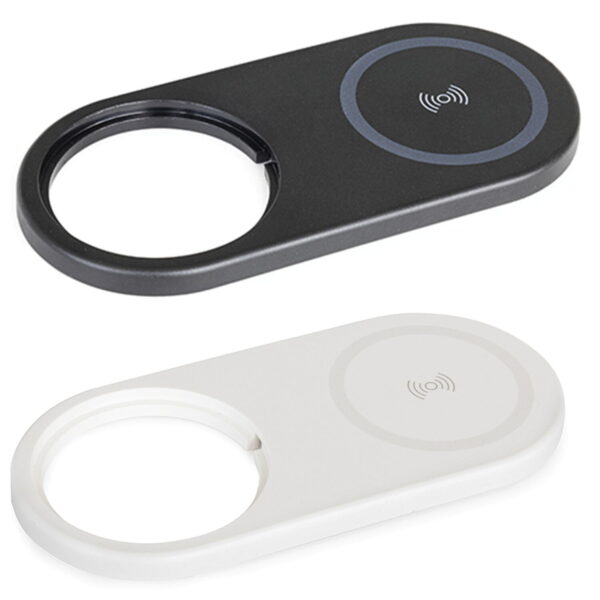

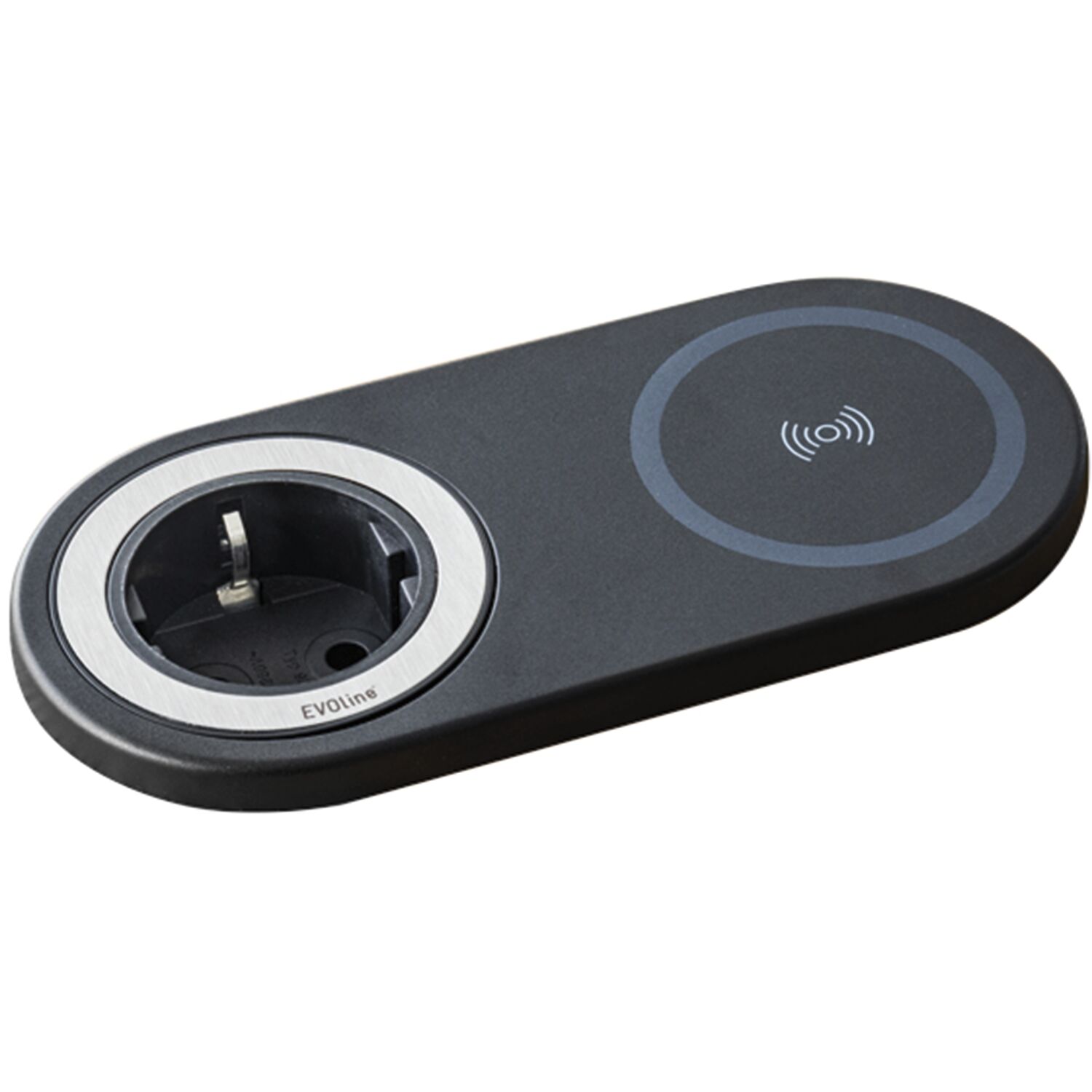

EVOline One DisQ, Extension module for EVOline One incl. EVOline DisQ with wireless charging function.
Not included:
– Power supply
– One power socket, USB charger or other One module

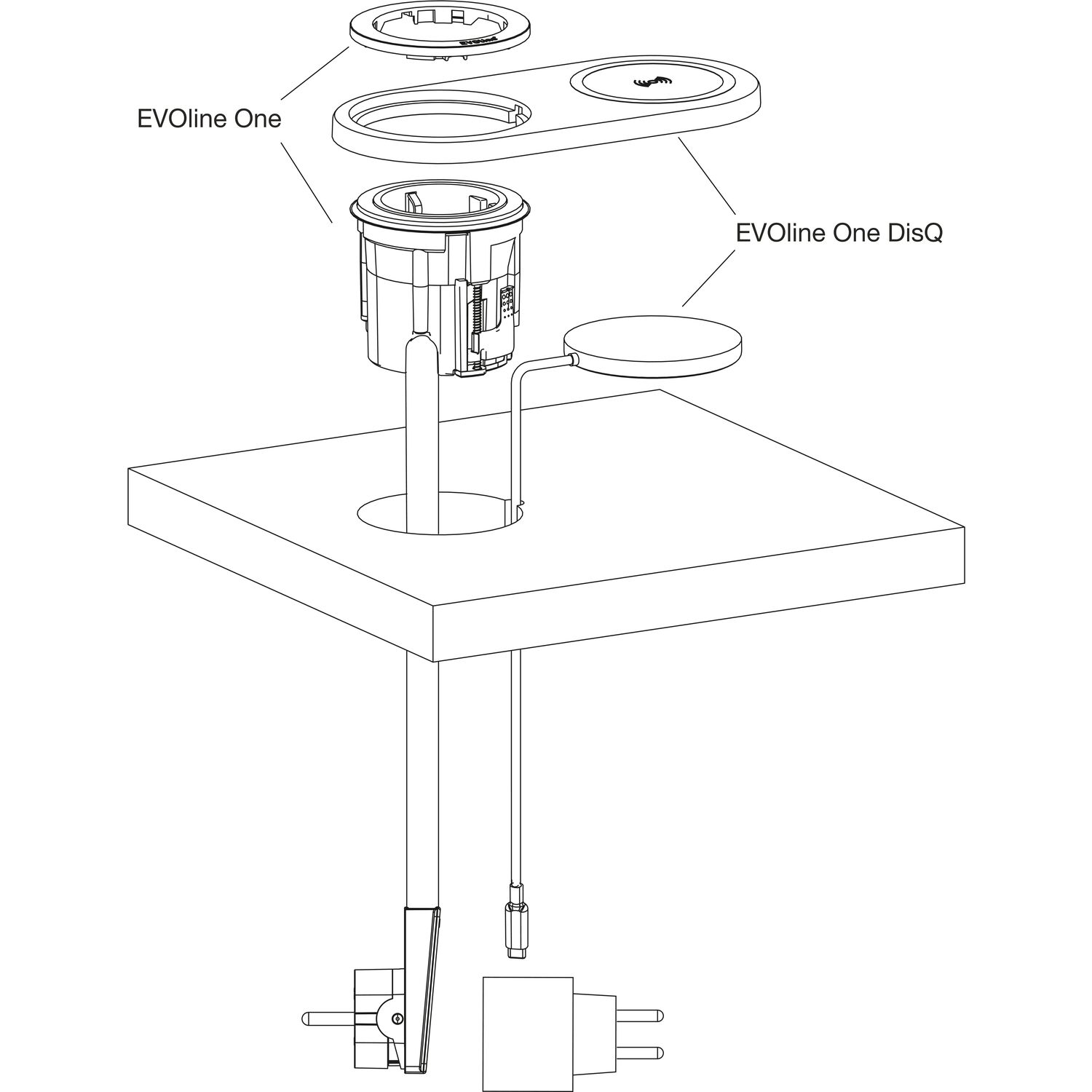

The EVOline One DisQ is a module extension providing the much-sought option to add ‘Wireless Charging’
of compatible smartphones to installed EVOline One units. Easy to retrofit, it simply requires a small adjust-

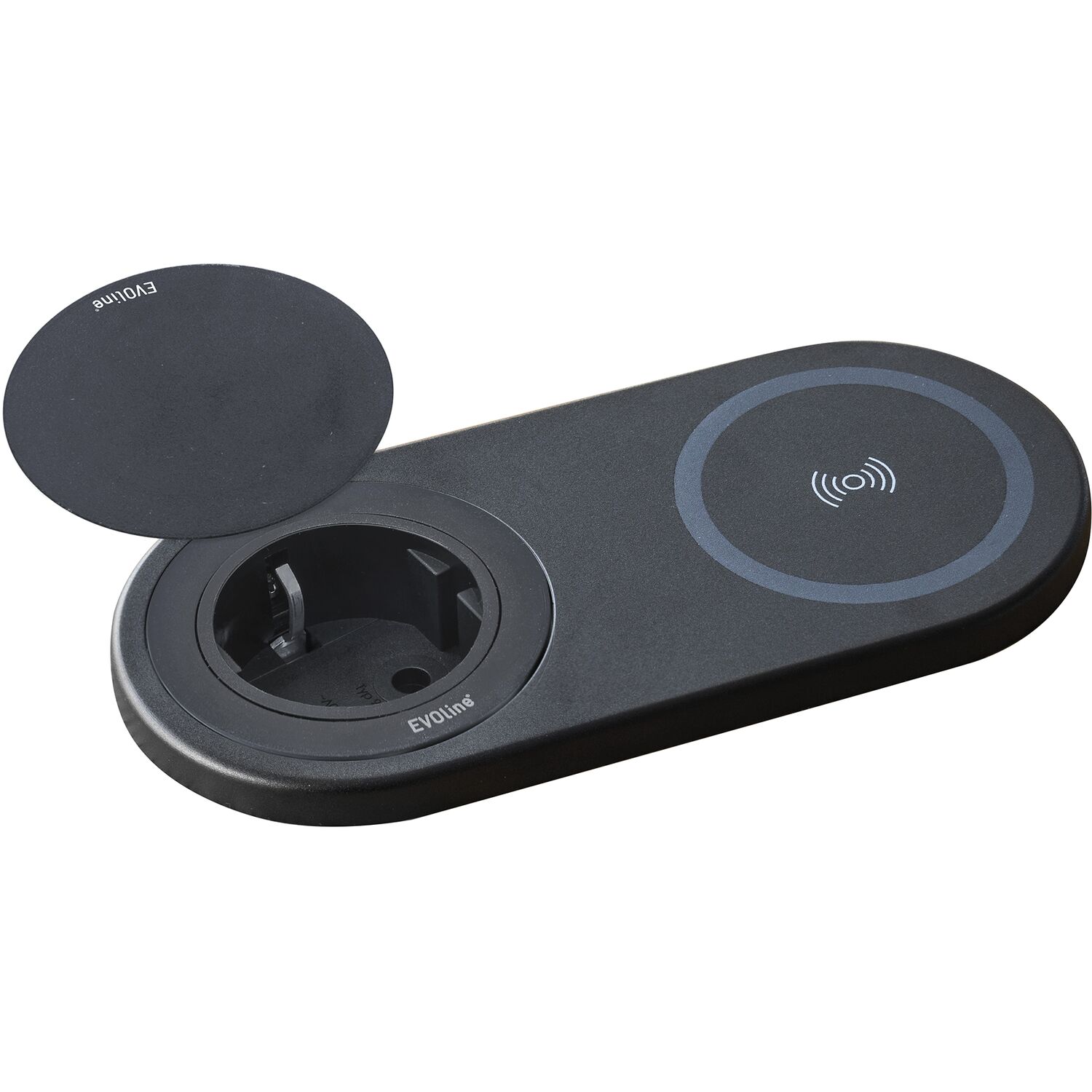

ment to upgrade whilst keeping the existing EVOline One installation. Power, USB Charger, Data or Multi-
media sockets of the EVOline One remain free to use during Wireless Charging and can even be used simultaneously!

A separate power supply unit (20W) is included.

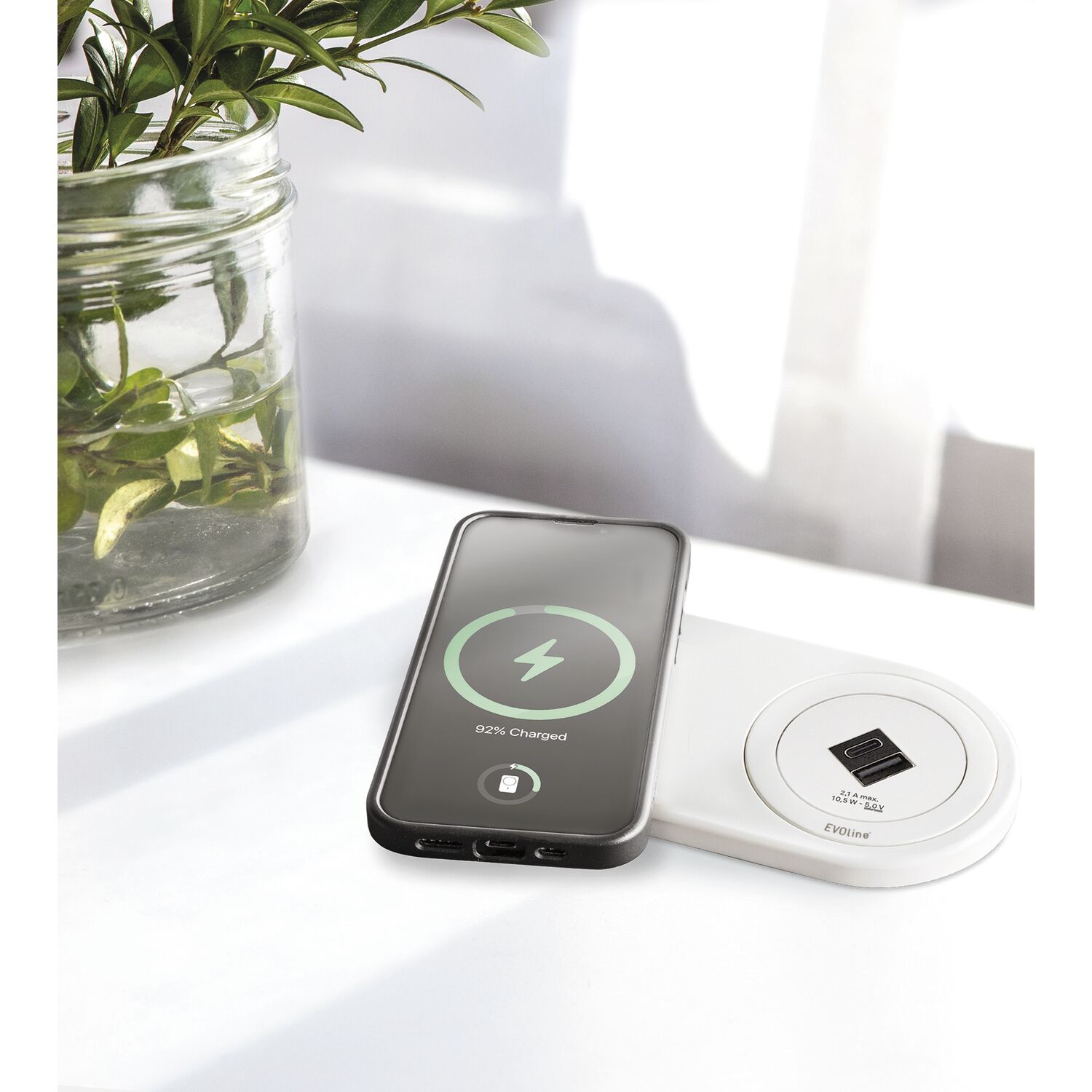

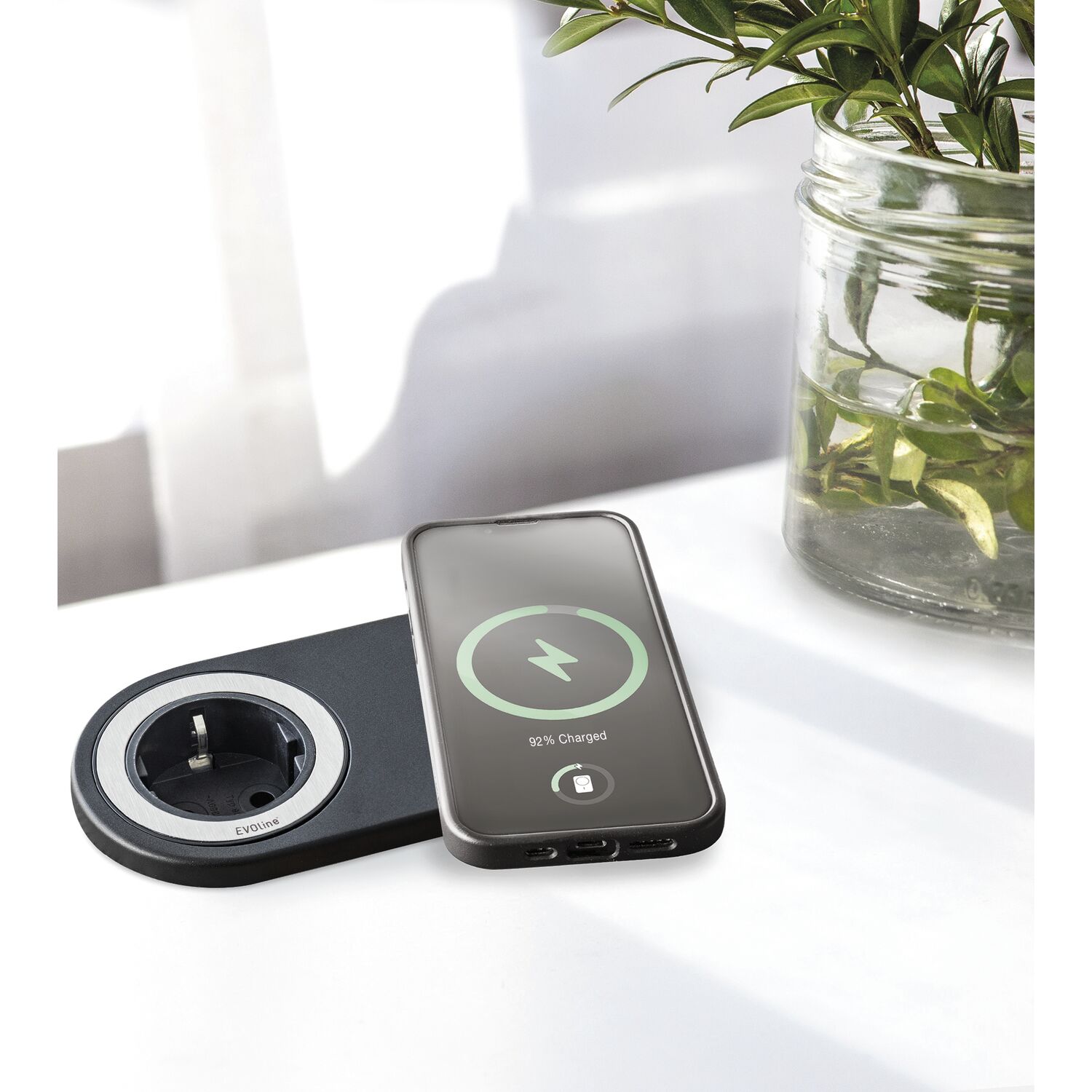

Wireless charging

• Inductive coupling between transmitter (charging station) and receiver (mobile phone)
• Vendor independent, charges devices with inductive charging function (the unit must be placed centrally and flat over the coil).
• Transmitter coil is active only when a connection to the receiving device is made
• Please note: The charging function may be impaired by covers or protruding housing parts (e.g. cameras).

Attention: no EVOline One module is supplied with the EVOline One DisQ

Qualitative socket for installation in furniture, table, kitchen

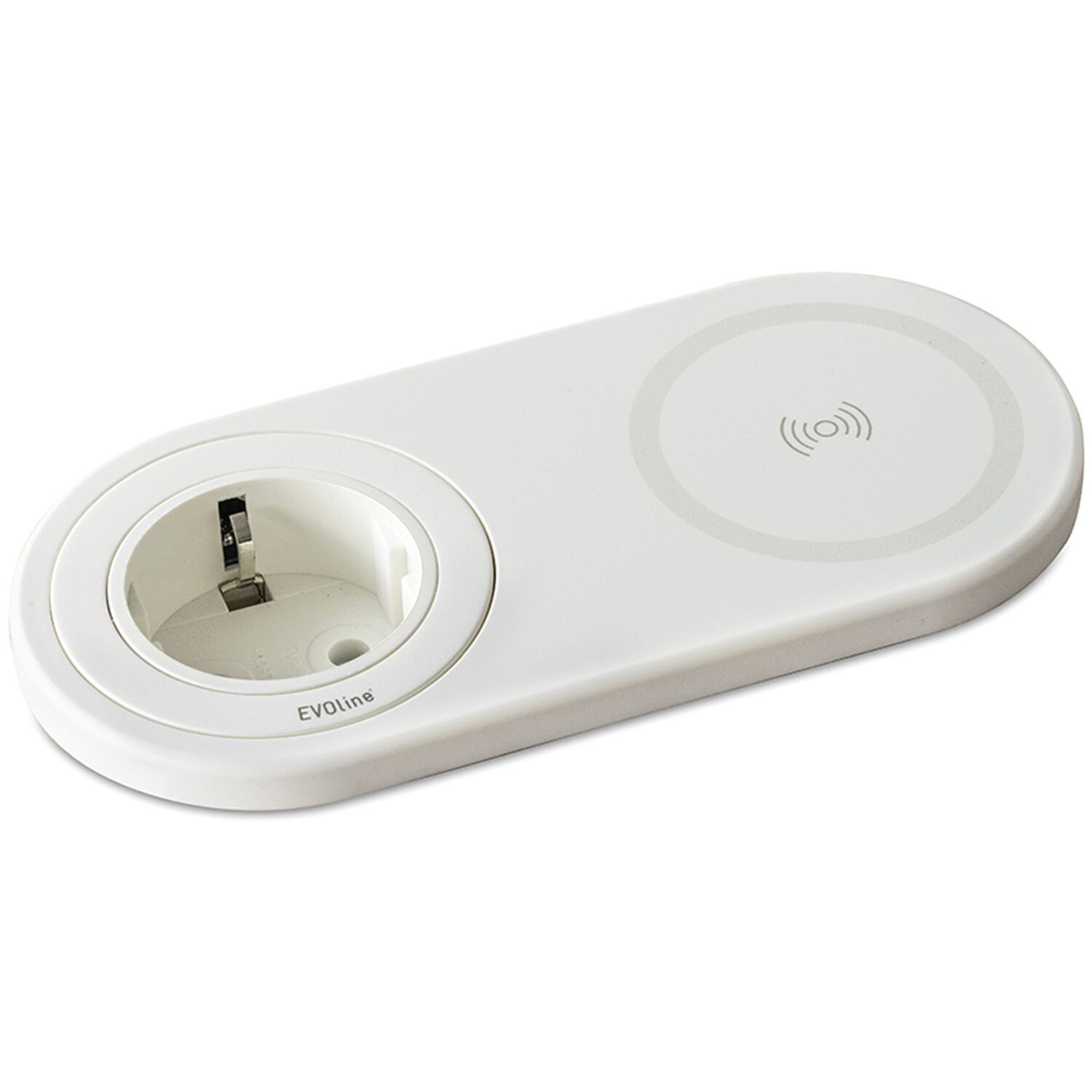

The EVOline One socket brings power wherever it is needed. Whether in the living room, in the kitchen, or in the conference room. The modern design single socket is space-saving and inconspicuous. The EVOline One built-in socket in white or black can be installed flush with the surface up to 4 mm and thus integrates into the environment.

Countless possibilities for assembly

The socket for the installation EVOline One has a flexible cable entry, which opens up numerous possibilities for attachment. With the variable cable entry, the minimum installation depth of only 50 mm is achieved. The installation diameter is very small at 54 mm and therefore takes up little space. For the installation of the power socket, a material thickness of the worktop, table, desk, or cupboard of 9 mm is required

There is no maximum material thickness. Two metal clamping pieces prevent the EVOline One socket with a decorative ring from falling out or slipping.
