EVOline FlipTop Push Multimedia L / Netbox / 2x power (UK-style)

Description

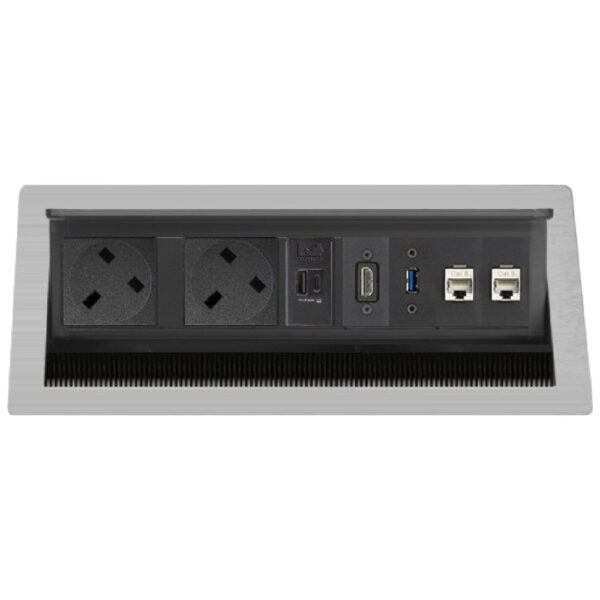

EVOline FlipTop Push Multimedia L, Netbox, 2x power (UK-style)

Specifications EVOline FlipTop Push Multimedia L

• • Max. worktop thickness 50 mm
  • Power cable with grounded plug

  Power Socket	2x power socket (UK-style)
  Data	2x RJ45 modular CAT6 shielded
  HDMI	1x HDMI 2.0 cable 0.2m
  USB	1x USB 3.0 Type-A cable 0.2m
  Nominal power	16 A
  Power current	230 V/50 Hz
  Length power cable	3 m
  Double USB-Charger	1x USB Type-A, 1x USB Type-C
  Charger voltage output	5V DC
  Charging current	2.1A
  Standby power use	< 0,1 W
  Color power cable	Black
  Color profile/housing	Black anodized aluminum
  Material cover/inlay	Brushed stainless steel
  Cable aperture	Black brush



  The EVOline FlipTop Push L UK-style is a fine resolution supplying all work areas with power, data, and multimedia. Exchangeable modules for data and multimedia ensure unlimited flexibility in case conditions at the workplace change.

  For worktops up to 50mm. 2x power sockets, UK-style, 2x RJ45 modular CAT6 shielded, 1x HDMI 2.0, 1x USB 3.0 Type-A multimedia, 16A fixed power cable with plug. The cover is opened through a soft push. Black brush cable aperture.

  Installation dimensions:
  EVOline Fliptop Push – exchangeable modules make the difference
  Downloads

  Different versions and options

  Besides the regular versions with brushed stainless steel inlays, there are also white and black powder-coated alternatives available. Most remarkable is that the black Fliptop version uses uniquely designed paint. Therefore keeping fingerprints to a minimum. Optional there is a cable tray/bottom enclosure available. This option is size dependant, consequently hiding all cables and connections under worktops.
