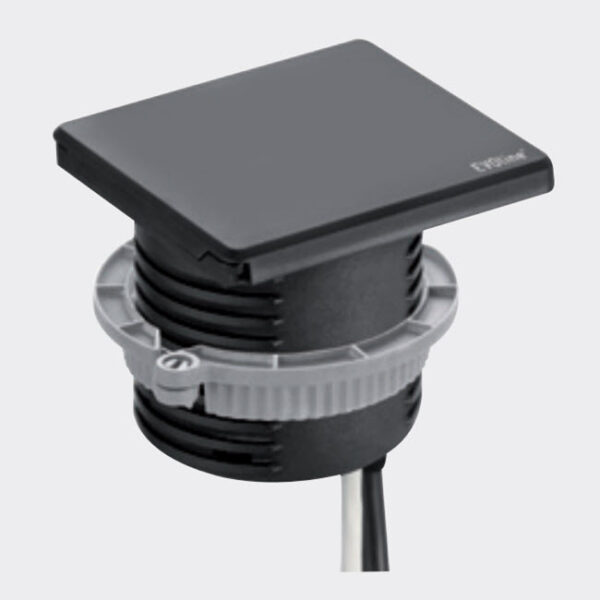

EVOline Square80 with Qi charger / 1x power / 1x USB charger / Black

208,50 177,50

Square80 Qi charger Black

EVOline Square provides a power socket, a USB Charger and a data connection inside the 80 mm diameter.
1x power socket, 1x USB charger, 1x Qi charger, housing plastic, sliding cover black plastic.

Available on backorder


EVOline Square80 Qi charger Black

Specifications EVOline Square80 Qi charger Black

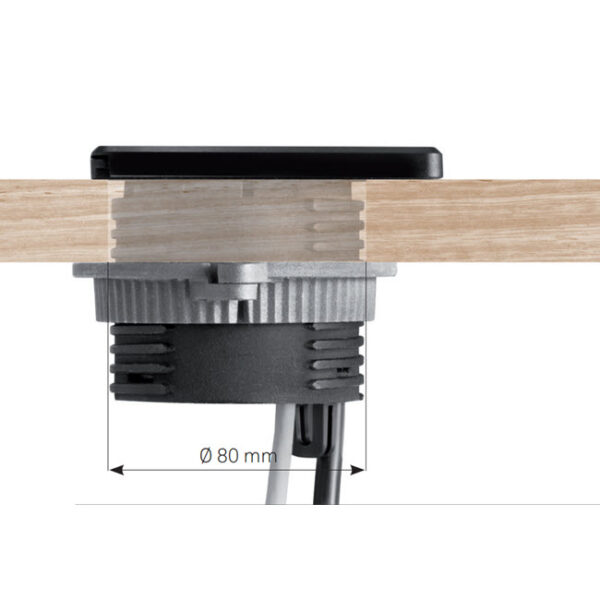

            • mounting hole Ø 80 mm
            • Max. worktop thickness 50 mm
            • Power cable with grounded plug

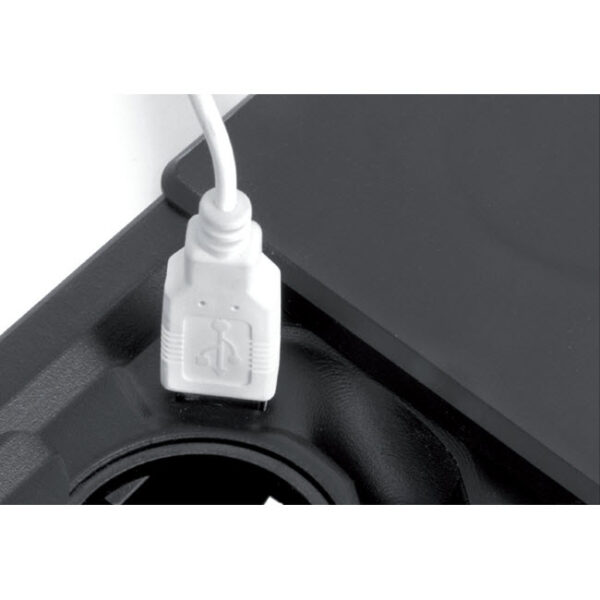

            • USB charger with 1 USB socket
            • Qi wireless charger


          Version1 way / 1 power socket
          Nominal power16 A
          Power current240 V/50 Hz
          Length power cable3 m
          Charger nominal input voltage100-240V AC (+10% / -10%)
          Charger nominal input frequency50-60 Hz
          Charger nominal output voltage1x 5V DC (+5% / -5%)
          Charger nominal output current1 x 1000 mA
          Charger standby power use< 0,1 W
          Qi wireless chargerQi-compatible power transmitter
          Color power cableBlack
          Color profile/housingBlack, plastic with sliding cover


        • EVOline Square 80 has all the connections you need. This cannot be configured yourself, but you can choose between USB and RJ45 power.

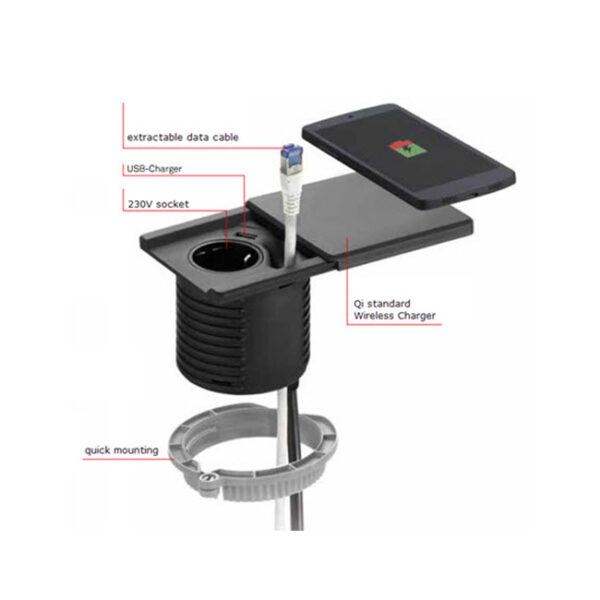

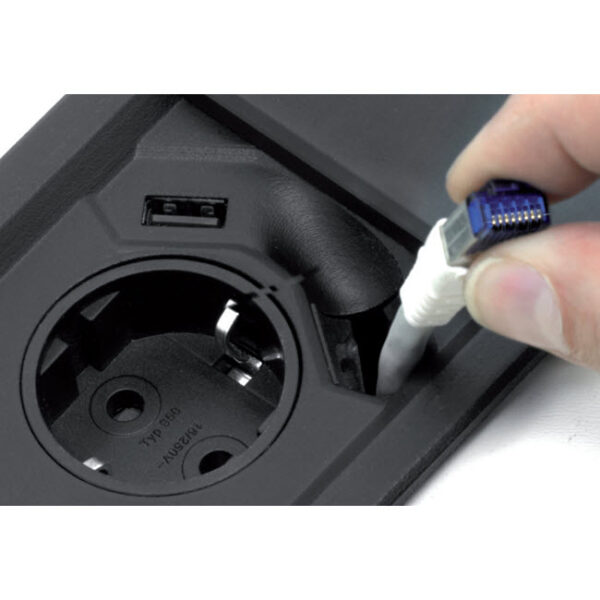

          With the EVOline Square80, you can make a connection for 230v, a USB charger, and a network port. Even when closed, the EVOline Square80 offers a smart solution.

        • Qi-charging

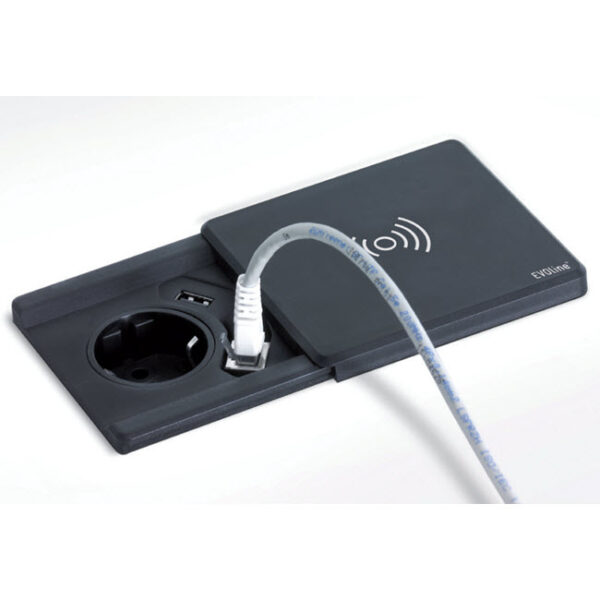

        • The sliding cover is designed for Qi as an inductive charging station so it can be charged wirelessly for, for example, Qi-compatible telephones. The EVOline Charger Qi can charge all Qi-compatible devices without cables and other accessories. This by simply placing your device on the logo, for example, after installation. No more cables!

          Even closed the EVOline Square gives you a clever proposition: The sliding cover in the Qi-version provides inductive technology for wireless charging of proper devices.
